2400MHz-2500MHz 600W RF Energy Solution

应用方案 | 日期：2023-07-21 | 阅读：

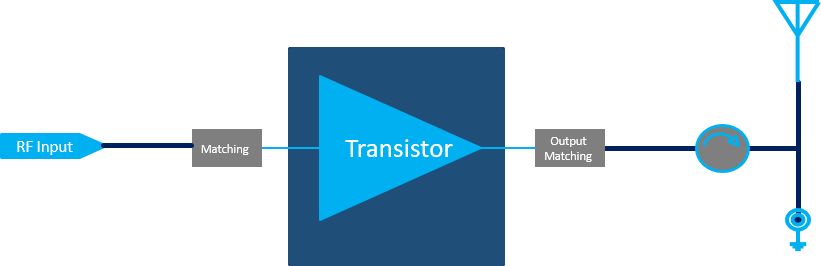

2400MHz-2500MHz 600W RF Energy Solution(图1)

Final:

DOD1H2425-600EF

2400MHz-2500MHz 600W RF Energy Solution(图2)

Package Type:

1230-4

	Modulated Signal
Freq (MHz)	Psat (dBm)	Gp (dB) @57.4dBm	DE (%) @57.4dBm
2435	57.95	15.1	72.5
2450	57.90	15.0	72.5
2465	57.90	14.9	72.6
Remark : Test Condition CW Pulsed: 10% Duty Cycle; Tested without isolator.
