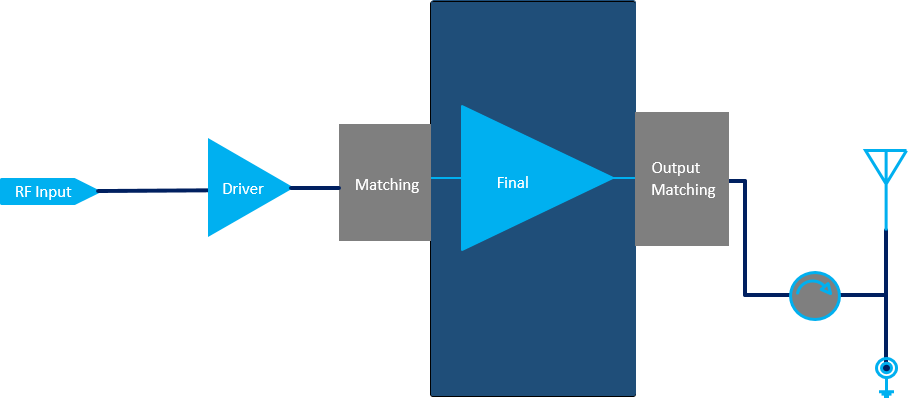

3300MHz-3600MHz 14W driver Solution

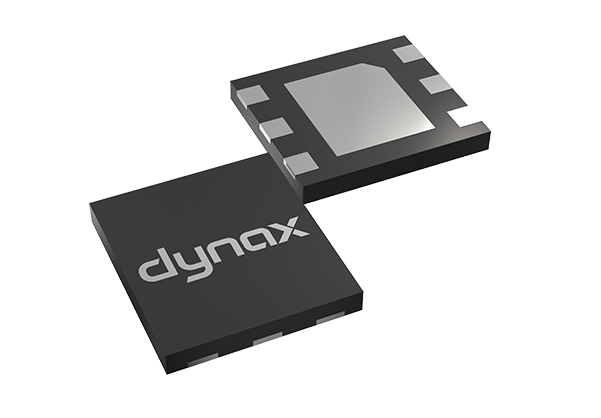

| Driver: DXG2PH60B-14N |
 | |
Package Type: DFN 4mm×4.5mm |
CW Pulsed 10% IDQ=20mA，Vds=48V | |||
Freq (MHz) | Psat (dBm) | Gt (dB) @Psat-6dB | DE (%) @Psat-6dB |
| 3400 | 42.2 | 14.9 | 40.4 |
| 3500 | 42.2 | 15.4 | 41.8 |
| 3600 | 42.2 | 15.3 | 39.7 |
Remark : Test Condition CW : 10% Duty Cycle. | |||
