3400MHz-3600MHz 20W Final Solution

应用方案 | 日期：2021-09-23 | 阅读：

3400MHz-3600MHz 20W Final Solution(图1)

Final:

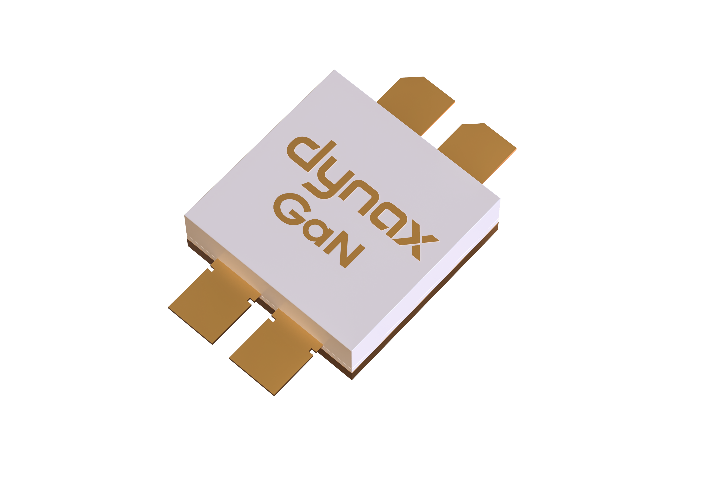

DXG1CH38A-200EF

3400MHz-3600MHz 20W Final Solution(图2)

Package Type: 780-4

	CW Pulsed 10%	Modulated Signal
Freq (MHz)	Psat (dBm)	Gp (dB)@44.1dBm	DE (%)@44.1dBm	ACLR (dBc)@ 44.1dBm
3400	53.5	14.7	46.0	-32.0
3500	53.7	15.0	46.5	-35.0
3600	53.5	14.7	45.4	-40.0
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH; Tested without isolator.
