1805MHz-1880MHz 8W Final Solution

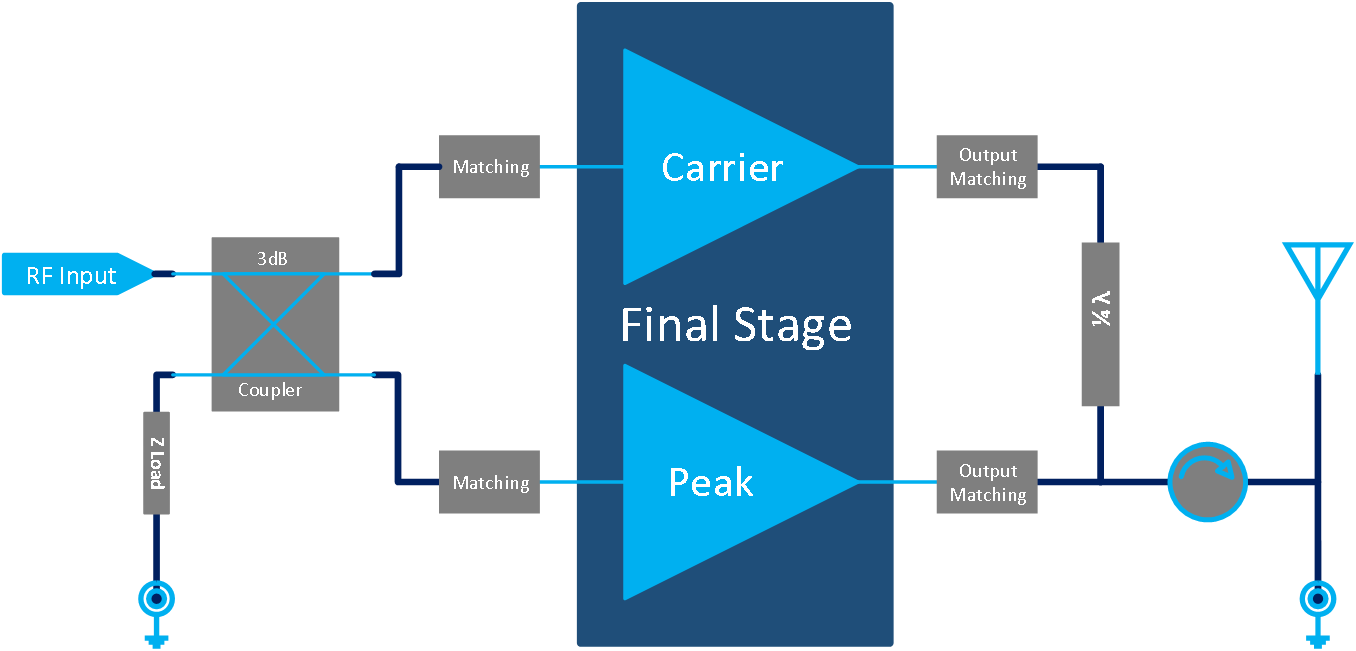

1805MHz-1880MHz 8W Final Solution (图1)

Final:

DXG1PH19A-60N

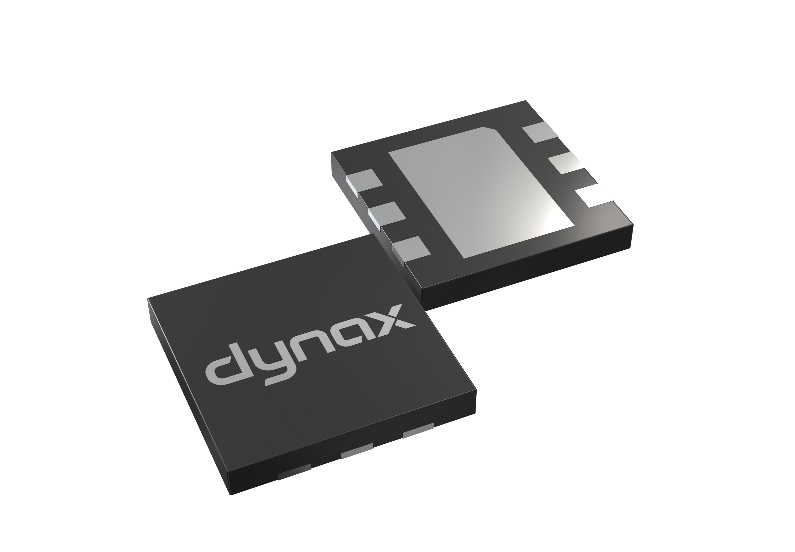

1805MHz-1880MHz 8W Final Solution (图2)

Package Type: DFN 7×6.5mm





CW Pulsed 10%


Modulated  Signal

Freq (MHz)

Psat (dBm)

Gp (dB)@40.3dBm

DE (%)@40.3dBm

ACLR (dBc)@40.3dBm

1805

48.2

18.3

61.8

-33.2

1842

48.2

18.4

61.8

-31.4

1880

48.2

18.3

62.0

-30.0


Remark : Test  Condition

CW Pulsed: 10% Duty Cycle, 100uS Duration;

Modulated Signal Type: 3.84MHz, 1C_WCDMA, PAR=7.8dB; 64DPCH;

Tested without isolator;
