2500MHz-2700MHz 45W Multi Market Solution

应用方案 | 日期：2021-09-23 | 阅读：

2500MHz-2700MHz 45W Multi Market Solution(图1)

Final:

DXG1CH60B-45CF/DF

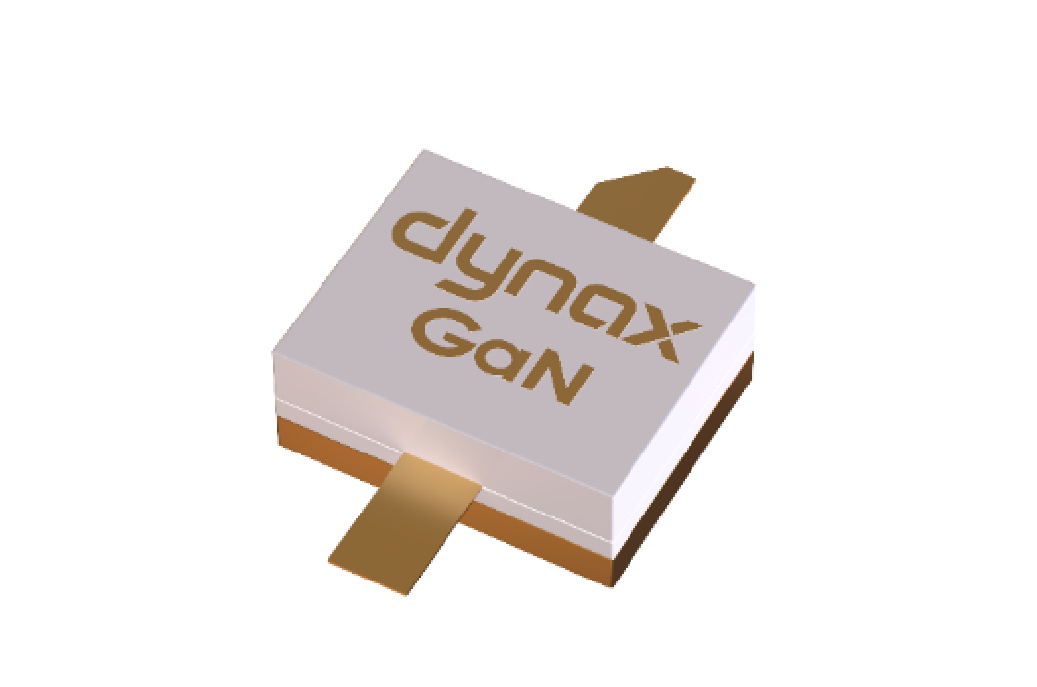

2500MHz-2700MHz 45W Multi Market Solution(图2)

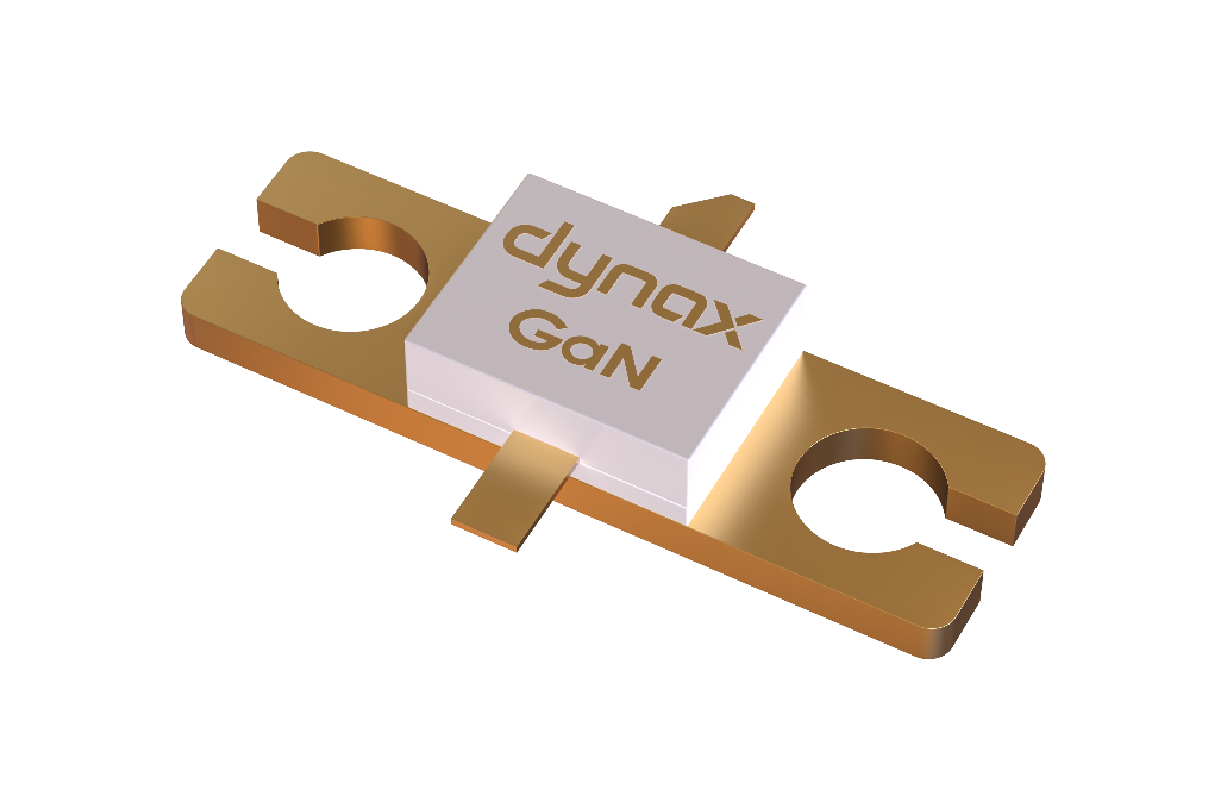

2500MHz-2700MHz 45W Multi Market Solution(图3)

Package Type:

780-4

	Modulated Signal
Freq (MHz)	Psat (dBm)	Gt (dB) @Psat-6dB	DE (%) @Psat-6dB
2500	46.3	18.5	69.8
2600	46.3	18.6	69.5
2700	46.2	18.6	69.5
Remark : Test Condition CW Pulsed: 10% Duty Cycle, 100uS Duration; Tested without isolator.
